USC-2 Manual > Board And Connectors

Board And Connectors 		Previous pageReturn to chapter overviewNext page

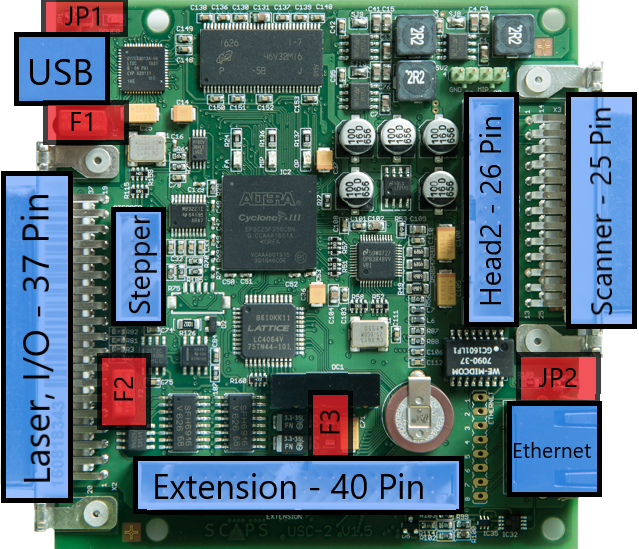

USC-2 Top View:

usc_2_connectors

Figure 4: USC-2 Top View

•Laser, I/O - 37 pin

•Scanner - 25 pin

•Head2 - 26 pin

•Extension - 40 pin

•Stepper - 10 pin

•USB

•Ethernet

•Jumper JP2

•Fuse F2

•Fuse F3

USC-2 Bottom View:

usc2_bot_jp

Figure 5: USC-2 Bottom View

•Laser, I/O shield SJ3, SJ4

•Scanner shield SJ1, SJ2

•USB shield SJ7

•Laser signal solder jumpers SJ_Laser

note

There are 4 drilled holes for mounting purposes next to the corners of the card which are not connected to anything.
