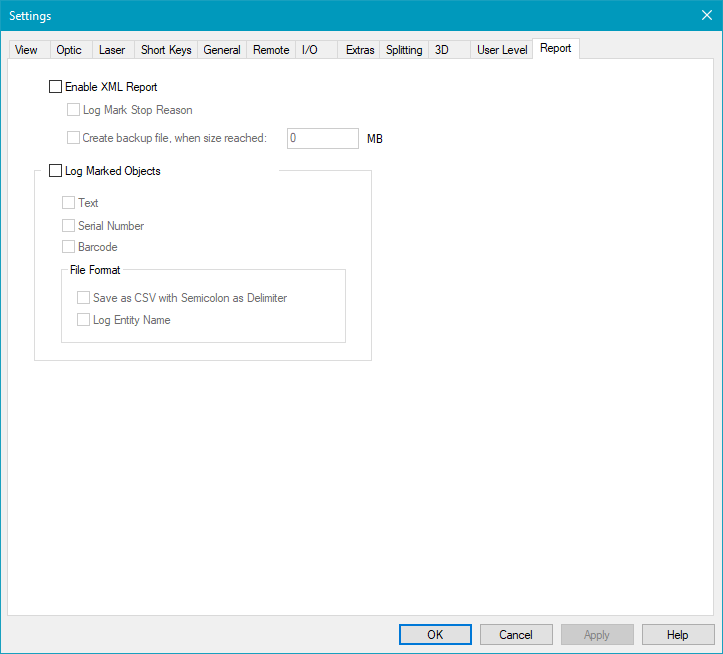

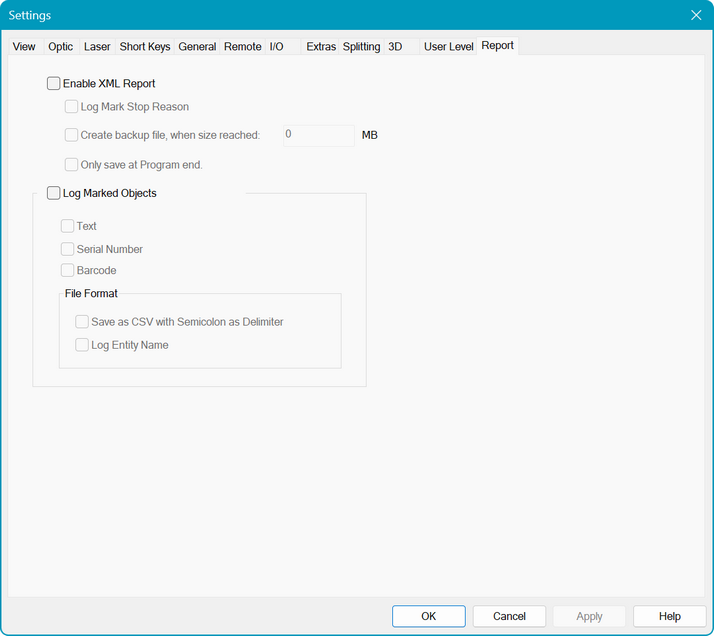

Figure 82: Report Dialog

Enable XML Report: Enable the report file output. If active each marking produces an output to a file named <Date>_<JobPath>.txt or .csv in which the marked objects are listed. The file will be located at <SCAPS>\reportfiles. If the file is older than three days, it will be renamed into a backup. If a backup is already present, it will be deleted in the process. The original file is emptied afterwards and filled again with new entries.

Log Mark Stop Reason: Extends the XML report file to record possible outer influences, which may stop the marking procedure. Common reasons are:

•Stop via mark dialog

•Stop via mark trigger dialog

•Stop via external stop

•Stop via interface (RS232 Entity, TimeOut on WaitForInput)

•Stop via controller signalled external stop

•Stop via emergency stop

•Stop via input

Create backup file, when size reached: After the specified file size is reached, a copy of the existing log is created and named using the current date and time. The previous log is emptied afterwards and will be filled with new entries. With this option enabled, the default option for creating backups after three days is disabled.

Log Marked Objects: This feature can be used in combination with the XMP Report or without. If Enable XML Report is checked then the report file will be extended. If Enable XML Report is unchecked then a new file is created at the directory <SCAPS>\reportfiles in *.txt format, containing the time and marked object.

Text, Serial Number, Barcode: Choose which entities should be included in the log.

File Format:

Save as CSV: If checked the output file will be in csv-format if not it will be a simple txt-file. Can not be used in combination with Enable XML Report.

Log Entity Name: If checked the entity name will be additionally included in the report file.
