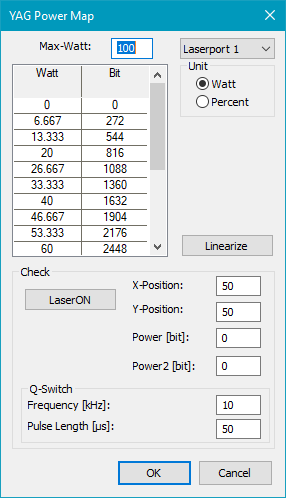

Figure 138: Power Map for YAG Laser

Max-Watt: Maximum power which can be emitted.

Laserport: Display the power map for the selected laserport. Only visible if a second laser port LP2 has been defined within the sc_setup.exe.

Unit: Watt or Percent can be used for the value.

List: Edit this list to map a resulting power of laser pulse to a 8 bit value. The Watt column is divided into sixteen equidistant values from 0 to Max-Watts whereas the Bit column is editable.

Linearize: Calculating power values so that the Bits increase linearly from 0 Watt to Max Watts.

Check: The Check field is for measuring the laser power in watt on a specific X-/Y-Position working with the edited Q-switch settings under a 8-bit value signal.

LaserOn: With this button the laser can be switched on and off again.

X-Position: Scanhead X-Position in SAMLight unit.

Y-Position: Scanhead Y-Position in SAMLight unit.

Power: Laserpower in bit.

Power2: Laserpower 2 in bit. Only visible if a second laser port LP2 has been defined within the sc_setup.exe.

Q-Switch:

Frequency [kHz]: Set frequency according to the pen frequency.

Pulse Length [μs]: Define high time for the frequency.
