A Standard Spiral can be created with the object toolbar button .
Figure 205: Spiral properties |

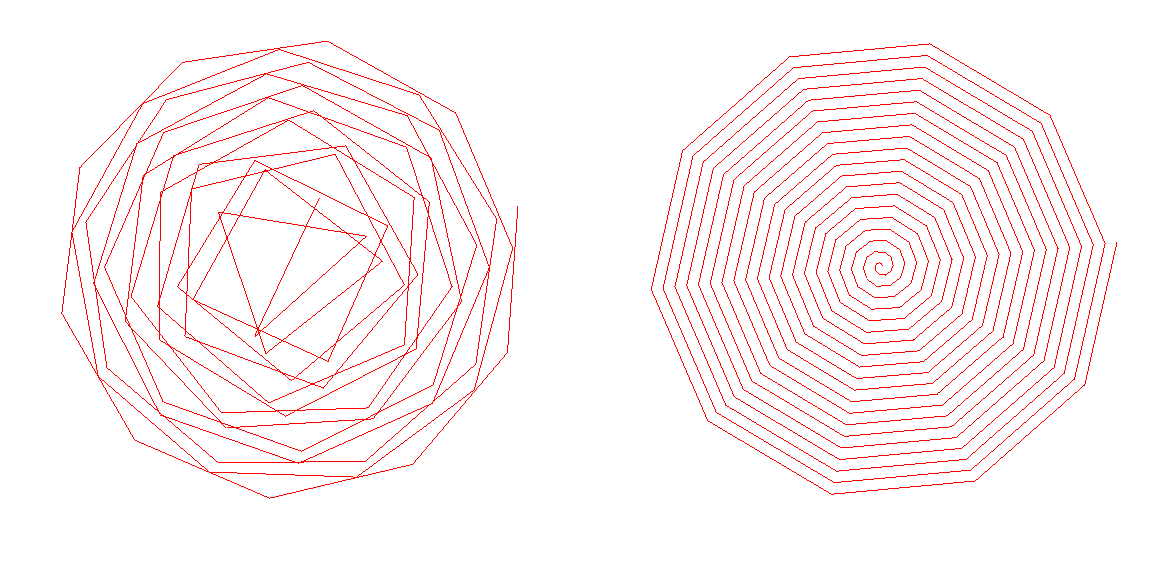

Radius: Defines the inner and outer radius of the spiral. Rotations: Defines the number of rotations on the inner or outer circle of the spiral. Rise: Defines the distance between succeeding circles inside the spiral. NumOuterSeg: Defines the number of segments of the outer circle. This proportion is taken as for the whole spiral. Clockwise: Defines the orientation of the convolution. Start from Outer: Defines the start point of the polyline. Set Return Path: If checked a return path is added and the spiral ends at its start point. Use NumSeg for every rot.: If checked the value for the NumSeg is used for every rotation. Statistic: Length: Length of the polyline. Num Points: Number of points on the polyline. Figure 206: Left without "Use NumSeg for every rot" - Right with "Use NumSeg for every rot" |
---|
