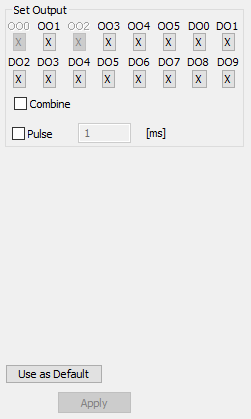

Figure 276: Set Output

Set Output: Sets the specified output bit of the IO port to high/low.

▪X: Do not care / Ignore input bit.

▪0: Wait for corresponding bit state 0.

▪1: Wait for corresponding bit state 1.

Combine: Allows to set multiple output bits at the same time.

Pulse: If selected the output bit gets set to its previous state again, n ms after the bit was set.

Use as Default: Set the current configuration as default. Default name of the control is for current shown state: '0036 - 0034' (mask is hexadecimal 0036, output state for this mask is hexadecimal 0034)
