<< Click to Display Table of Contents >  SAMLight Manual > Option Flash (USC-2/3 only) Option Flash (USC-2/3 only)

The Flash option is available with a USC-2 or USC-3 card. It enables you to store jobs on the card which can be executed afterwards in stand alone mode without a PC being involved. Controlling the card in stand alone mode is possible via the Flash Control Interface. Alternatively, the IO's can be used to select the desired job and start/stop the marking process. The job preparation is done on the PC via SAMLight or by saving an existing G-Code file on the card. The jobs are saved on the card via a USB or Ethernet connection.

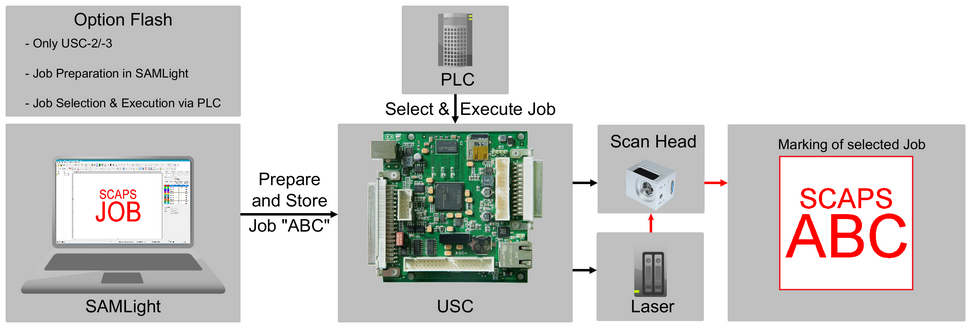

Figure 451: Option Flash Illustration
