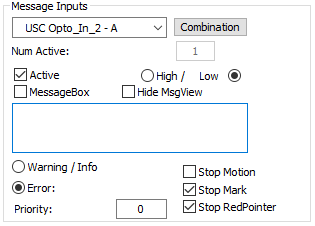

Figure 67: Message Inputs4

Input bits can be used to cause a message output. The selected bit must be activated to send the defined message by the Active check box. The message appears if the selected bit is either high (H) or low (L) according to the selected radio button. An error or a warning message is displayed in the message view dialog as well as in the status bar. If Hide MsgView is activated, the message view is invisible.

Dropdown menu: Choose input bit, status or additional warnings from the list.

▪RTC: 0 .. 15 (Extension 1 connector, Digital_In 0 .. 15)

▪USC: 3 .. 6 (37-pin connector, Opto_In2 .. 5) & 7 .. 16 (Extension connector, Digi_In0 .. 9, USC-2/-3)

▪USC-2/-3: Status #0 .. #19: These status bits refer to the 20-bit word of the XY2-100 feedback (always X-Channel of Head0) from the scan head. The user may define a unique message / error for any of these bits.

▪Error warning info: These warnings can be reset in the status bar.

•Out of data with laser on (OD) is set when a buffer underrun occurred.

•Out of field (OF) is set when a position overflow (head specific optic matrix, MOTF, Analog In, USC-3 Wobble) occurred.

•Overflow MOTF offset (OM) is set when a MOTF offset is reached too early (e.g. still marking).

Figure 68: Reset OF, OD and OM by right-click  followed by a left-click on Reset Warning

Combination: This button opens a dialog Message Input Combination, which can be used to combine two or three input bits.

Num Active: Counts the number of activated Message Inputs.

Active: Enable the chosen message input from the dropdown menu.

High/Low: Choose if the reaction is based on active high or active low input.

MessageBox: Enable displayed message box in case of registered input.

Hide MsgView: Hide the message view in case of registered input.

Warning/ Info or Error: Choose between displayed error or info window.

Stop Motion: If Message Input is executed the Motion is stopped. Does not influence any homing during startup. (only available for USC-2/-3 and Motion Type 14)

Stop Mark: If Message Input is executed the Marking is stopped.

Stop RedPointer: If Message Input is executed the red pointer is stopped.

Priority: For each activated input (Warning/Info and Error), a priority can be set. If more than one input is active at the same time, the one with the highest priority will be shown in the status bar. Error always wins over Warning/Info.
