Splitting > Splitting Mode > Angular Splitting

Angular Splitting is designed for marking round, rotating objects. The object rotates in steps, with a new segment marked at each stop until the full circumference is covered. This mode requires the connected motion controller to have at least one rotational (angular) axis configured.

AngularSplitting_ok

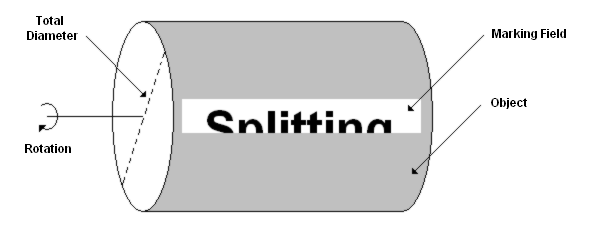

Figure 409: Rotation Object

	If an option is grayed out in the Splitting Settings dialog, it cannot be used with the currently selected splitting option. Parameters that are checked but grayed out are not used.

The following table lists all available parameters for Angular Splitting and their availability per marking mode:

Angular Splitting Parameters	Vector Marking
Angular Splitting Parameters	Fixed Size Splitting	Entity Based Splitting	Character Based Splitting
Axis Speed	✔	✔	✔
Split Repetitions	✔	✔	✔
Job Repetitions	✔	✔	✔
Split Overlap	✔	—	—
Group Width [a]	—	✔	—
Start Position	✔	✔	✔
Workpiece Movement	✔	✔	✔
Move Back to Start Position	✔	✔	✔
Keep Mark In Progress Active	✔	✔	✔
Cog Vectors in Overlap Area	✔	✔	—
Avoid Unnecessary Splits	✔	—	—
Do Not Recalculate Split Lines	✔	—	—
Top Level Entities as Split Parts [b]	—	✔	—
Order by Start Border [b]	—	✔	—
Ungroup Text [b]	—	✔	—
Axis	✔	✔	✔
Split Order	✔	✔	✔
Diameter	✔	✔	✔
Split Angle	✔	—	—
Repetitions Over 360°	✔	✔	✔
Tolerate Larger Split Jobs Than 360°	✔	✔	✔
Move Forward to Start Position	✔	✔	✔

Table 51: Angular Splitting Parameter

[a]: Not available when Top Level Entities as Split Parts is checked.

[b]: Cannot be used together with Group Width.

Configuration of these parameters is done in the Angular Splitting dialog shown below.

AngularSplitting

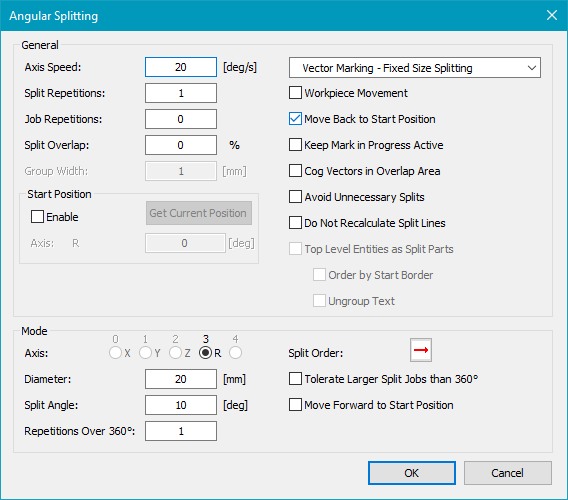

Figure 410: Angular Splitting Dialog

The figure below illustrates how an Angular split job changes once marking is triggered via Mark → Trigger.

Figure 411: Angular Split before and after activation of Mark → Trigger
