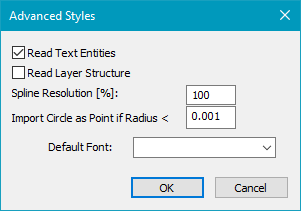

Figure 379: Advanced Styles for DXF dialog

Read Text Entities: Is checked by default. If activated, text entities are imported.

Read Layer Structure: Is checked by default. If different layers are existing within the imported dxf file, these layers are imported to different layers entities in View Level 2 of the entity list.

Spline Resolution [%]: In case of present splines and circle entities within the dxf file, the resolution of the import can be edited. With a higher resolution the amount of vectors will be increased. A higher value will therefore result in smoother looking arcs and circles. The Spline Resolution can be set to values larger than 100 to further increase the amount of vectors.

Import circle as point if radius < ...: A limit can be given up to which size a circle should be imported as a point.

During import, splines are split into upt to 200 polylines if the resulting polylines are bigger than a lower limit which depends on the field size.
