Entities (Objects) > Barcode > 2D BarCodes > QR Code BarCodes

Figure 272: Example Barcode QR Code with content '123'	Note: QR Codes have a square matrix structure, consisting of finder patterns, alignment patterns, and data modules. QR Codes support high data capacity, fast readability, and robust error correction, making them versatile for various industries. Possible Characters: Numeric characters (0-9), Alphanumeric characters (A-Z), (0-9) and special characters including "space", Binary Data (8 bits) and Kanji characters. Number of Characters: Up to 4,296 alphanumeric characters. Error Correction: Different Reed-Solomon Error detection and correction levels (Recovers ~7-30% of symbol damage).
Figure 273: Barcode Extended for QR Code	BarCode Extended for QR Code: Enable ~: Allows to encode 3-digit decimal values. The format is ~d followed by 3 digits. This leads to a compression of the data because ~d will not be used and the following 3 digits as decimal number will be encoded by the according character in the ASCII-table. For example: ~d090 will be changed into 90 of the ASCII-table, e.g. the character Z Barcode Mode: Choose the desired mode in the drop down menu. Options are 'Numeric', 'Alpha', 'Byte', and 'Kanji'. Note that, depending on the selected mode, different types of characters are allowed. You will get direct feedback, via the 'Valid' checkbox (see Barcode). In addition, the selected mode also changes the number of valid characters! Rest of the Settings: See extended settings dialog.

barcode_QRCode

Figure 272: Example Barcode QR Code with content '123'

Note: QR Codes have a square matrix structure, consisting of finder patterns, alignment patterns, and data modules. QR Codes support high data capacity, fast readability, and robust error correction, making them versatile for various industries.

Possible Characters: Numeric characters (0-9), Alphanumeric characters (A-Z), (0-9) and special characters including "space", Binary Data (8 bits) and Kanji characters.

Number of Characters: Up to 4,296 alphanumeric characters.

Error Correction: Different Reed-Solomon Error detection and correction levels (Recovers ~7-30% of symbol damage).

BarCodeExtended_QRcode

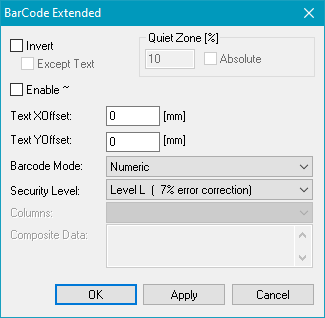

Figure 273: Barcode Extended for QR Code

BarCode Extended for QR Code:

Enable ~: Allows to encode 3-digit decimal values. The format is ~d followed by 3 digits. This leads to a compression of the data because ~d will not be used and the following 3 digits as decimal number will be encoded by the according character in the ASCII-table. For example: ~d090 will be changed into 90 of the ASCII-table, e.g. the character Z

Barcode Mode: Choose the desired mode in the drop down menu. Options are 'Numeric', 'Alpha', 'Byte', and 'Kanji'.

Note that, depending on the selected mode, different types of characters are allowed. You will get direct feedback, via the 'Valid' checkbox (see Barcode).

In addition, the selected mode also changes the number of valid characters!

Rest of the Settings: See extended settings dialog.
