The option "Head2'' is included in the license 'Head2'. This feature is only supported for USC-2/-3/-4. RTC cards have to have this feature. |
|---|
The option Head2 allows to send the same data to two heads through one scanner controller board.
The USC-2/-3/-4 board offers an additional scan head connector. In total you can connect 2 scan heads and one laser source. Through this feature you can double the working areas. Both heads can only mark at the same time and the same content. An additional component regarding the laser is needed. Since the USC-board controls one laser source for two working areas, the laser beam has to be split. The marked content will therefore always be the same, but you can apply different correction settings to each head. These do not include the Z-Correction settings which are used by both heads simultaniously. Regarding the setup of each own head there is a dropdown menu within the correction settings.

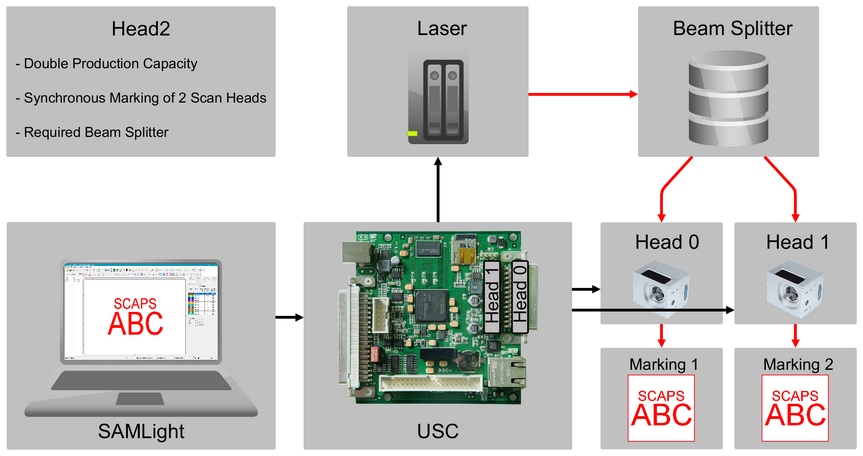

Figure 491: Illustration of a Head2 construction
