Direct Motion Control: In the following all features of the Direct Motion Control are described. Depending on the capabilities of the used motion controller some of the functions may be not available.

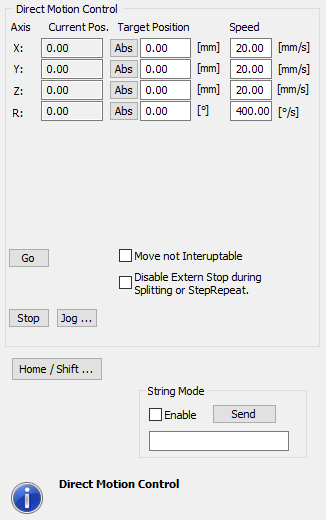

Figure 43: Direct motion control dialog |
Direct motion control: Axis: Axis name like specified in the settings. Current Pos.: Shows the current position. abs/rel: The user can switch between absolute or relative movement to the set target position. Target Position: Target position of the selected axis. Speed: Define the axis moving speed. Go: Moves all axes to the defined values above. Stop: Stops the movement. In some cases you can loose the current position! Then a homing is necessary to re-calibrate your axes. Update: By pressing this button the actual position is updated. This might be necessary if manual motions are done. The Update Button is not available for stepper motor controllers. Jog...: Opens the Jog Dialog. Home / Shift: Opens direct motion control Home / Shift dialog. Homing of a single axis is available by right-clicking on this button and then selecting the desired axis.
String Mode: Enable and send RS232 commands.
(There is no further information to both checkboxes.) |
---|
