Standard USB Series B Connector, self powered configuration. The maximal cable length with standard cables is 5 meters, with repeaters up to 25 meters.
|
Connection problems can also result from ground loops. To avoid these loops there is a solder jumper on the bottom side of the USC-1. If the jumper is closed (by default), the cable shield is connected to the USC-1 ground. Open the jumper to disconnect USC-1 ground and cable shield. |
|---|

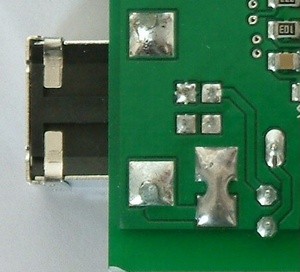

Figure 5: USB cable shield closed (default)

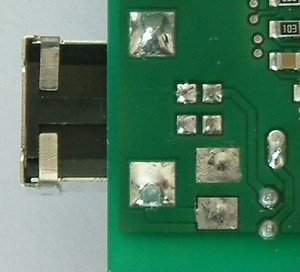

Figure 6: USB cable shield open
